Description
| Feature | Description |
|---|---|
| Brand | TEAPU |
| Series | PT Series |
| Capacitance Range | 3.3–4700µF |
| Rated Voltage Range | 2.5–450V DC |
| Technology | Low ESR Aluminum Electrolytic Technology |
| Endurance | 2,000 Hours @ 125°C |
| RoHS Compliance | RoHS Compliant and Lead-Free |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TEAPU |
| Series | PT Series |
| Product Type | Aluminum Electrolytic Capacitor |
| Temperature Range | -55°C to +125°C |
| Rated Working Voltage Range | 2.5–450V DC |
| Nominal Capacitance Range | 3.3–4700µF |
| Capacitance Tolerance | ±20% (M); -35%/+10% (L); -10%/+20% (V); 0~+20% (A) at 120°C, 120Hz |
| DC Leakage Current | I ≤ 0.1CV. Where, I: Leakage current (µA), C: Nominal capacitance (µF), V: Rated voltage (V), at 20°C after 2 minutes |
| Dissipation Factor (tanδ) | Not to exceed the value specified |
| ESR (100kHz, 20°C) | Not to exceed the value specified |
| Endurance | 2,000 Hours @ 125°C |
| ESR Technology | Low ESR |
| Environmental Compliance | RoHS Compliant and Lead-Free |
Performance Advantages
| Advantage | Benefit |
|---|---|
| Low ESR Technology | Provides low equivalent series resistance for efficient circuit operation. |
| Wide Voltage Range | Available in rated working voltages from 2.5V to 450V DC. |
| Wide Temperature Range | Reliable operation from -55°C to +125°C. |
| 2,000-Hour Endurance | Provides dependable long-term operation at 125°C. |
| RoHS Compliant | Lead-free and compliant with RoHS environmental requirements. |
| Flexible Capacitance Range | Available from 3.3µF to 4700µF for a wide range of electronic applications. |
Applications
| Application | Typical Usage |
|---|---|
| SPM | Power filtering and energy storage applications. |
| Display Card | Power supply filtering and voltage stabilization for display equipment. |
| Small Chargers | Energy storage and filtering in compact charging equipment. |
| Welding Equipment | Power filtering and energy storage in welding equipment. |
| TV Equipment | Power supply filtering and voltage stabilization in television equipment. |
| Electronic Equipment | General-purpose power filtering, smoothing and energy storage. |
Why Choose TEAPU
TEAPU PT Series aluminum electrolytic capacitors are designed to provide dependable electrical performance, low ESR characteristics and stable operation across a wide range of electronic applications. The series offers a broad capacitance range from 3.3µF to 4700µF and rated working voltages from 2.5V to 450V DC.
With an operating temperature range of -55°C to +125°C and an endurance rating of 2,000 hours at 125°C, PT Series capacitors are suitable for demanding power supply, display, charging, welding and television equipment applications.
Choosing TEAPU PT Series means selecting practical aluminum electrolytic capacitor technology with Low ESR performance, broad electrical specifications and RoHS-compliant, lead-free construction.
Quality Assurance
TEAPU PT Series capacitors are designed according to specified electrical characteristics for capacitance, rated voltage, leakage current, dissipation factor and ESR performance. Each series specification is defined to support consistent operation across the specified temperature and voltage ranges.
The PT Series is RoHS compliant and lead-free, providing a suitable solution for electronic equipment where reliable performance and environmental compliance are important.
Product Summary
| Category | Information |
|---|---|
| Brand | TEAPU |
| Series | PT Series |

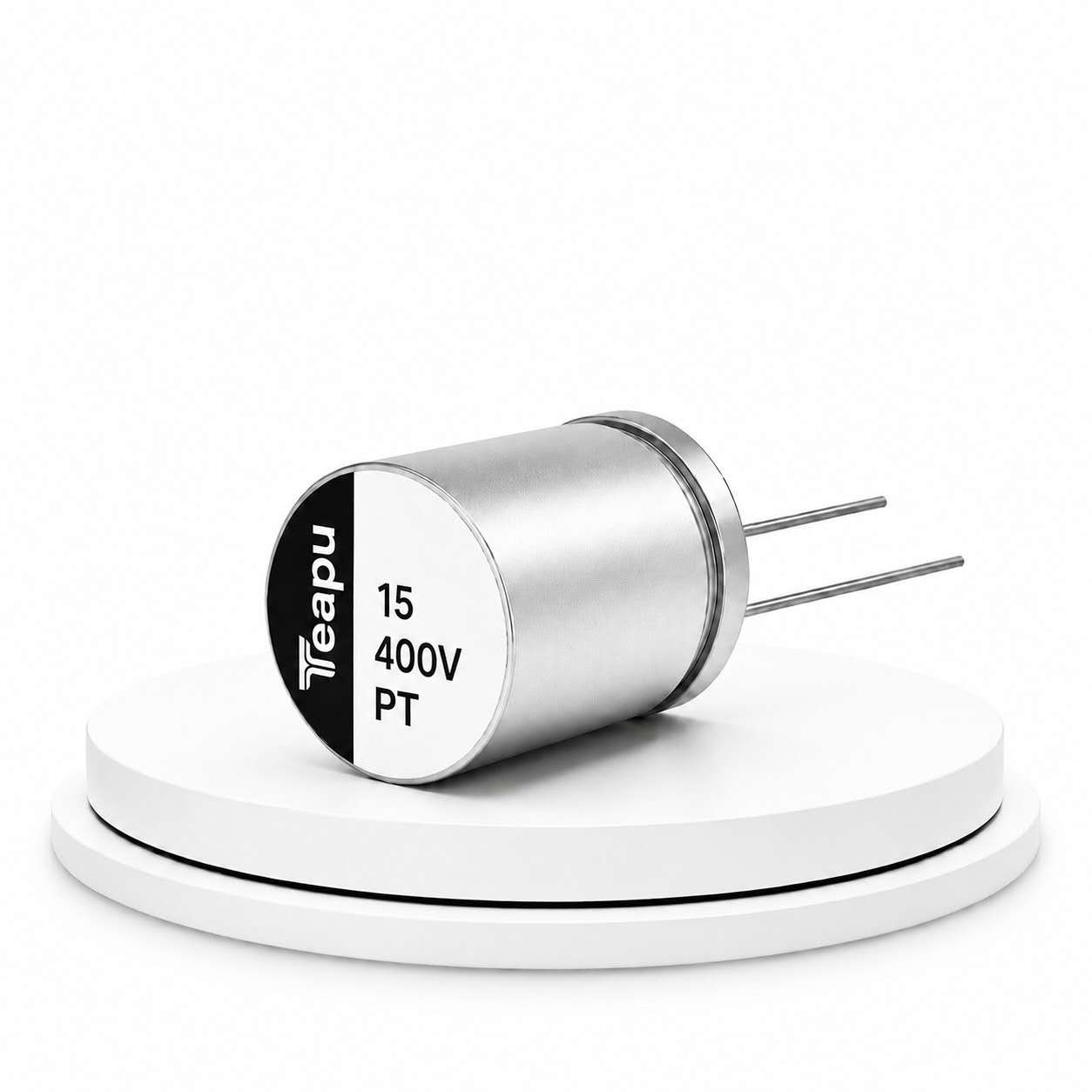

| Product | PT Series Low ESR Aluminum Electrolytic Capacitor |
| Operating Temperature | -55°C to +125°C |
| Endurance | 2,000 Hours @ 125°C |
| Technology | Low ESR Aluminum Electrolytic Technology |
| Recommended Applications | SPM, Display Card, Small Chargers, Welding Equipment and TV Equipment. |
| Environmental Compliance | RoHS Compliant and Lead-Free |
TEAPU PT Series aluminum electrolytic capacitors are engineered to provide Low ESR performance, dependable electrical characteristics and stable operation across a broad range of electronic applications.
The PT Series offers capacitance values from 3.3µF to 4700µF, rated working voltages from 2.5V to 450V DC, an operating temperature range of -55°C to +125°C and 2,000 hours endurance at 125°C. The series is also RoHS compliant and lead-free.
