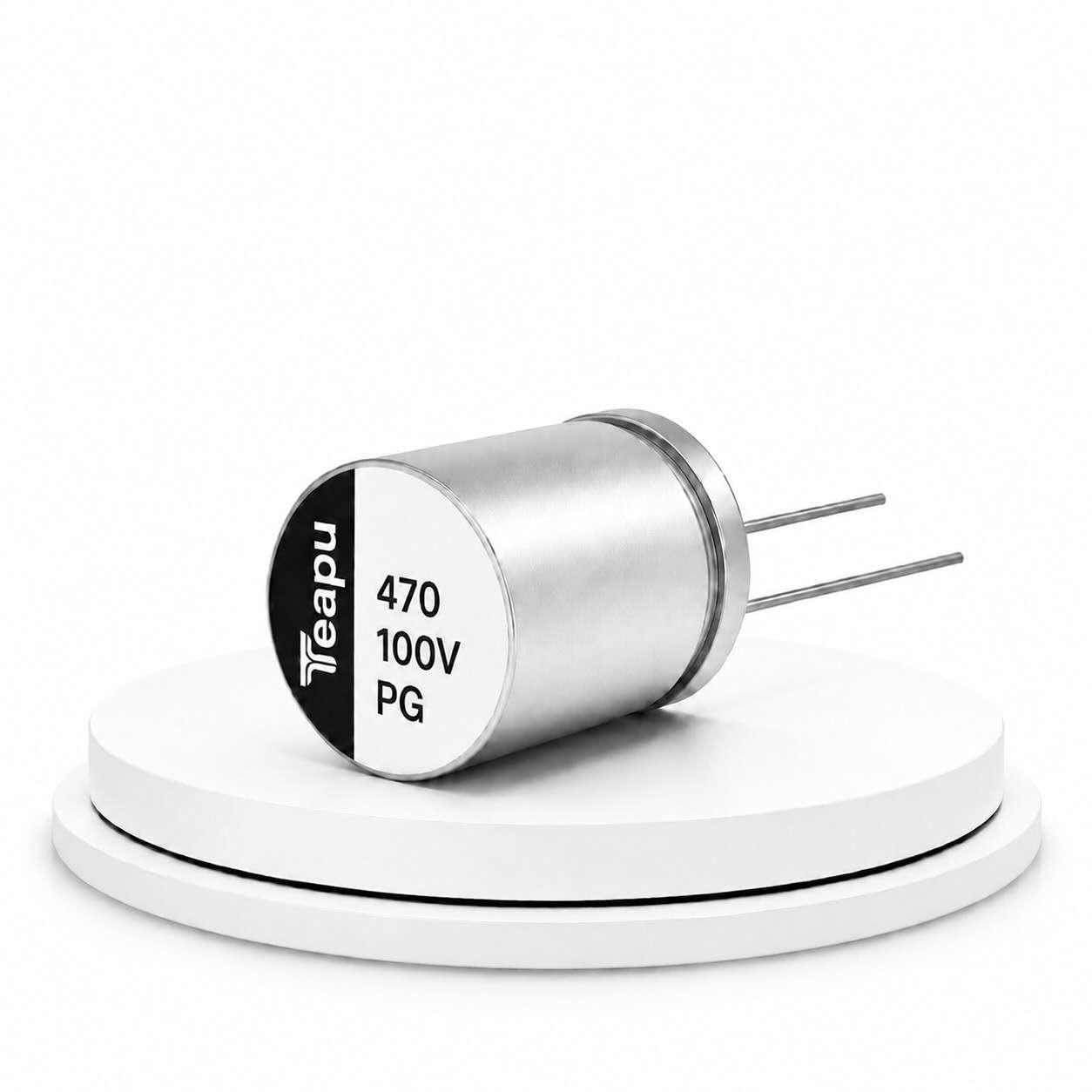

Description
| Feature | Description |
|---|---|
| Brand | TEAPU |
| Series | PG Series |
| Capacitance Range | 3.3–4700µF |
| Rated Working Voltage Range | 2.5–450V DC |
| Technology | Low ESR Aluminum Electrolytic Technology |
| Endurance | 1,900 Hours at 105°C |
| Compliance | RoHS Compliant and Lead-Free |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TEAPU |
| Series | PG Series |
| Product Type | Low ESR Aluminum Electrolytic Capacitor |
| Capacitance Range | 3.3–4700µF |
| Rated Working Voltage Range | 2.5–450V DC |
| Operating Temperature Range | -55°C to +105°C |
| Endurance | 1,900 Hours at 105°C |
| Capacitance Tolerance | +20% (M), -35% to +10% (L), -10% to +20% (V), 0 to +20% (A) at 120Hz |
| DC Leakage Current | I ≤ 0.1CV (at 20°C after 2 minutes) |
| Leakage Current Formula | I: Leakage current (µA), C: Nominal capacitance (µF), V: Rated voltage (V) |
| Dissipation Factor (tanδ) | Not to exceed the value specified |
| ESR | Low ESR; not to exceed the specified value at 100kHz and 20°C |
| RoHS Compliance | RoHS Compliant and Lead-Free |
Performance Advantages
| Advantage | Benefit |
|---|---|
| Low ESR Technology | Helps reduce equivalent series resistance and supports efficient power filtering and stable circuit operation. |
| Wide Capacitance Range | Available from 3.3µF to 4700µF for flexible use across a broad range of electronic circuit designs. |
| Broad Voltage Range | Supports rated working voltages from 2.5V to 450V DC for diverse power supply and electronic applications. |
| 105°C Operation | Designed for dependable operation across a -55°C to +105°C temperature range. |
| 1,900-Hour Endurance | Provides reliable service performance for suitable electronic equipment operating under specified conditions. |
| RoHS Compliant & Lead-Free | Supports environmentally conscious electronic manufacturing and RoHS-compliant product requirements. |
Applications
| Application | Typical Usage |
|---|---|
| System Boards | Power filtering, voltage stabilization and energy storage for system board circuits. |
| Display Cards | Power supply filtering and voltage smoothing for display and graphics card circuits. |
| Small Chargers | Filtering and energy storage in compact charging and power supply applications. |
| Intelligent TVs | Power filtering and stabilization for smart TV and intelligent television electronic circuits. |
| Consumer Electronics | Suitable for compact electronic devices requiring reliable aluminum electrolytic capacitor performance. |
| Power Supply Circuits | DC power filtering, voltage smoothing and energy storage in electronic power supply designs. |
Why Choose TEAPU
TEAPU PG Series aluminum electrolytic capacitors are designed to provide dependable electrical performance, low ESR characteristics and flexible application capability across a wide range of electronic circuits. With capacitance values from 3.3µF to 4700µF and rated working voltages from 2.5V to 450V DC, the PG Series offers practical solutions for power filtering, voltage stabilization and energy storage.
The PG Series is engineered for an operating temperature range of -55°C to +105°C and provides an endurance rating of 1,900 hours at 105°C. Its Low ESR design makes these aluminum electrolytic capacitors well suited for system boards, display cards, small chargers, intelligent TVs and other electronic equipment where stable power filtering and reliable circuit performance are important.
For manufacturers, engineers and electronic repair professionals, TEAPU PG Series capacitors offer a versatile combination of capacitance options, voltage ratings, Low ESR performance and RoHS-compliant lead-free construction for modern electronic applications.
Quality Assurance
TEAPU PG Series capacitors are designed according to specified electrical and environmental performance requirements. Key characteristics include capacitance tolerance, DC leakage current, dissipation factor and Low ESR performance, supporting consistent operation in a broad range of electronic applications.
With RoHS-compliant and lead-free construction, the PG Series is suitable for modern electronic manufacturing requirements and applications where dependable aluminum electrolytic capacitor performance, environmental compliance and stable electrical characteristics are essential.
Product Summary
| Category | Information |
|---|---|
| Brand | TEAPU |
| Series | PG Series |
| Product | PG Series Low ESR Aluminum Electrolytic Capacitor |
| Capacitance Range | 3.3–4700µF |
| Rated Working Voltage Range | 2.5–450V DC |
| Operating Temperature | -55°C to +105°C |
| Endurance | 1,900 Hours at 105°C |
| Technology | Low ESR Aluminum Electrolytic Technology |
| Compliance | RoHS Compliant and Lead-Free |
| Recommended Applications | System Boards, Display Cards, Small Chargers, Intelligent TVs and Other Electronic Power Filtering Applications. |
TEAPU PG Series aluminum electrolytic capacitors are engineered to provide Low ESR performance, reliable electrical characteristics and flexible capacitance and voltage options for a wide range of electronic applications.
With capacitance values from 3.3µF to 4700µF, rated working voltages from 2.5V to 450V DC and an operating temperature range of -55°C to +105°C, the PG Series is well suited for system boards, display cards, small chargers, intelligent TVs and other electronic equipment requiring dependable power filtering and voltage stabilization.
