Description
| Feature | Description |
|---|---|
| Brand | TEAPU |
| Series | JVD Series |
| Capacitance | 22µF |
| Rated Voltage | 400V DC |
| Case Size | 12.5 × 16.5 mm |
| Technology | Aluminum Electrolytic Capacitor Technology |
| Endurance | 2,000 Hours at 105°C |
| Temperature Range | -40°C to +105°C |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TEAPU |
| Series | JVD Series |
| Product Type | High-Voltage Aluminum Electrolytic Capacitor |
| Capacitance | 22µF |
| Rated Working Voltage | 400V DC |
| Case Size | 12.5 × 16.5 mm |
| Operating Temperature | -40°C to +105°C |
| Endurance | 2,000 Hours at 105°C |
| Environmental & Reliability Indicators | The JVD series is designed to withstand temperatures from -40°C to +105°C, with a stated cycle life of 1 million times. |
| Dissipation Factor (tanδ) | Not to exceed the value specified. |
Performance Advantages
| Advantage | Benefit |
|---|---|
| 400V High-Voltage Rating | Provides dependable voltage handling for industrial, medical and lighting power supply circuits. |
| 22µF Capacitance | Supports effective energy storage, DC filtering and voltage stabilization in compact power electronics. |
| 105°C Endurance | Rated for 2,000 hours of endurance at 105°C for reliable long-term operation. |
| Wide Temperature Range | Designed for stable performance across operating temperatures from -40°C to +105°C. |
| Compact 12.5 × 16.5 mm Size | Compact cylindrical construction helps engineers optimize PCB space in power supply designs. |
| Reliable Electrical Performance | Controlled dissipation factor and robust electrolytic construction support dependable circuit operation. |
Applications
| Application | Typical Usage |
|---|---|
| Industrial Power Supplies | DC-link filtering, energy storage and voltage stabilization in industrial power supply systems. |
| Medical Power Supplies | Reliable filtering and energy storage for professional medical electronic power systems. |
| Lighting Power Supplies | DC filtering and voltage stabilization for LED drivers and other electronic lighting power supplies. |
| Industrial Automation | Power conditioning and filtering for industrial control equipment and automation systems. |
| Power Conversion Equipment | Energy storage and smoothing applications in AC-DC converters and high-voltage power electronics. |
| Electronic Equipment Repair | Replacement capacitor for compatible industrial, medical and lighting electronic equipment. |
Why Choose TEAPU
TEAPU JVD Series aluminum electrolytic capacitors are engineered for dependable performance in high-voltage power supply applications. The JVD 400V 22µF capacitor combines a compact 12.5 × 16.5 mm case size with a 400V DC rated working voltage, making it suitable for space-conscious industrial and professional electronic designs.
With an operating temperature range of -40°C to +105°C and an endurance rating of 2,000 hours at 105°C, the JVD Series is designed to provide reliable electrical performance in demanding environments. Its aluminum electrolytic construction supports stable filtering, energy storage and voltage smoothing in industrial, medical and lighting power supply systems.
Choosing TEAPU means selecting professionally engineered electronic components designed for consistent quality, dependable operation and long-term performance across a wide range of power electronics and industrial applications.
Quality Assurance
Every TEAPU JVD Series capacitor is manufactured with a focus on consistent electrical performance, dimensional accuracy and long-term reliability. Production quality controls help ensure that capacitors meet their specified capacitance, voltage, temperature and endurance requirements.
The JVD 400V 22µF capacitor is designed for dependable operation in industrial power supplies, medical power equipment, lighting systems and other professional electronic applications where reliable high-voltage filtering and energy storage are essential.
Product Summary
| Category | Information |
|---|---|
| Brand | TEAPU |
| Series | JVD Series |

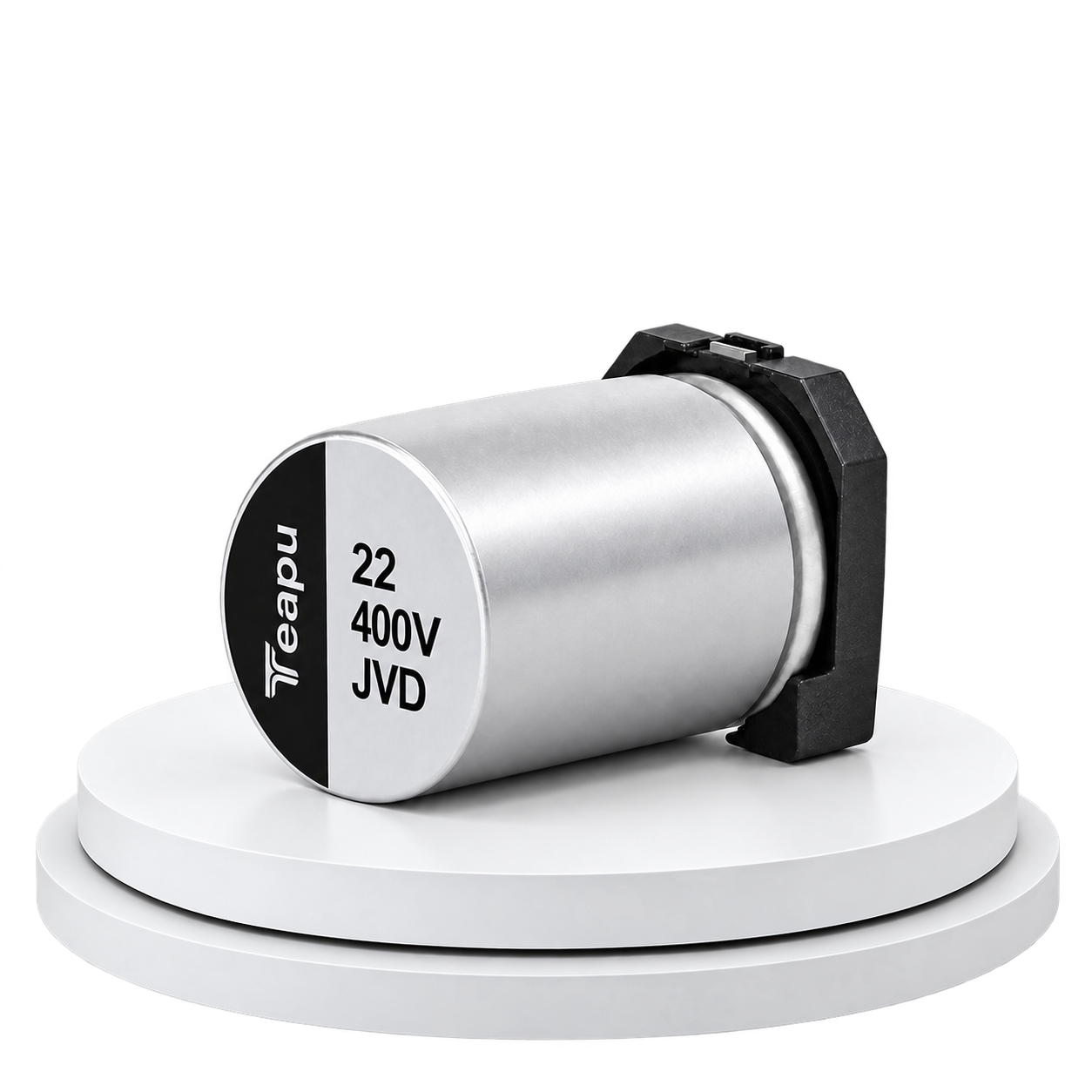

| Product | JVD 400V 22µF Aluminum Electrolytic Capacitor, 12.5 × 16.5 mm |
| Rated Voltage | 400V DC |
| Operating Life | 2,000 Hours at 105°C |
| Temperature Range | -40°C to +105°C |
| Recommended Applications | Industrial Power Supplies, Medical Power Supplies, Lighting Power Supplies, Industrial Automation, Power Conversion Equipment and Professional Electronic Repair. |
TEAPU JVD Series aluminum electrolytic capacitors are engineered for reliable high-voltage power applications, offering stable electrical performance, compact construction and dependable endurance for industrial, medical and lighting power supply systems.
The JVD 400V 22µF capacitor features a 400V DC rated voltage, 22µF nominal capacitance, -40°C to +105°C operating temperature range and 2,000-hour endurance at 105°C, making it a practical solution for professional power electronics and demanding electronic equipment.
