Description
| Feature | Description |
|---|---|
| Brand | TEAPU |
| Series | MT Series |

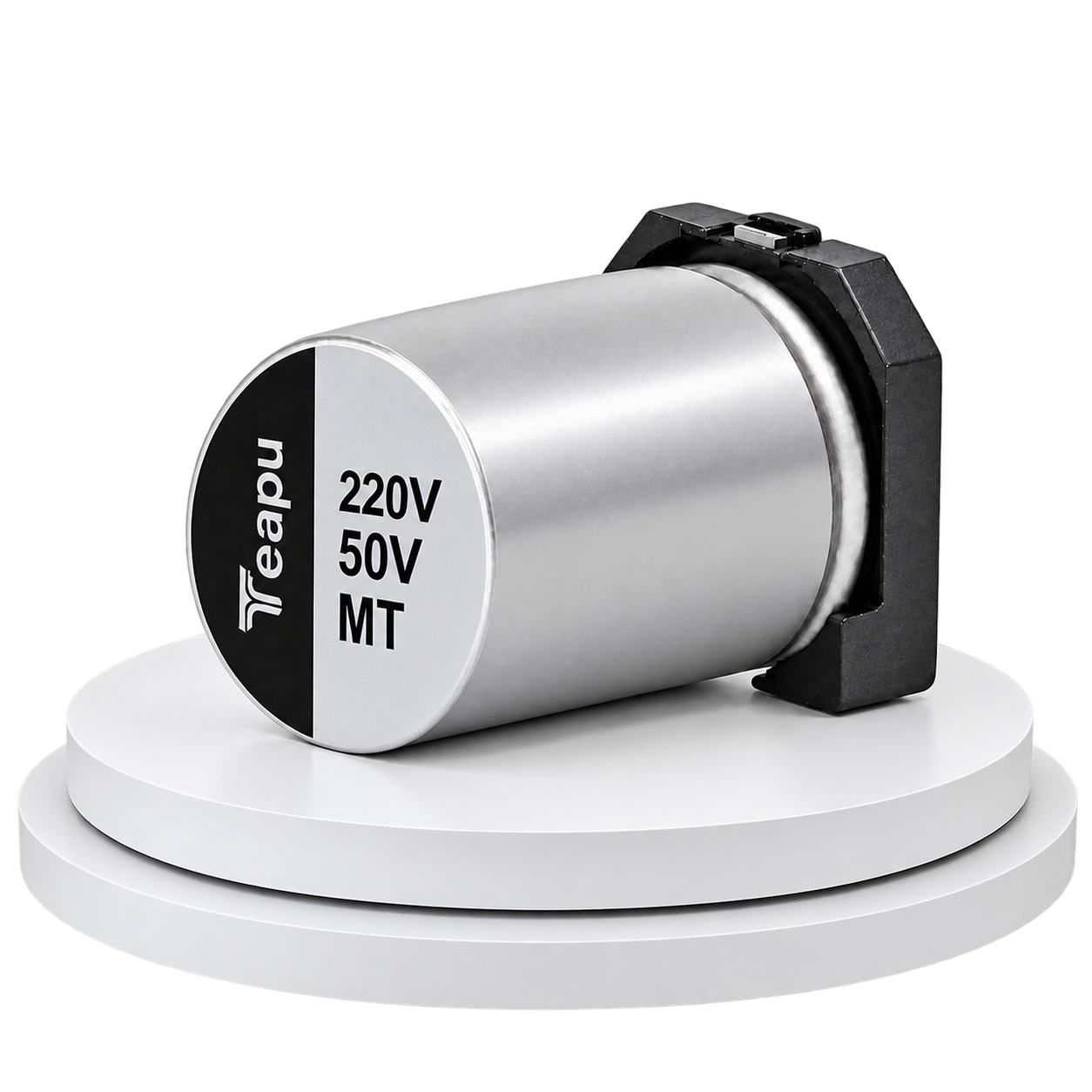

| Product | MT 50V 220µF 10×10.5 mm Low ESR High Ripple Aluminum Electrolytic Capacitor |
| Rated Voltage | 50V DC |
| Capacitance | 220µF |
| Case Size | 10 × 10.5 mm |
| Technology | Low ESR Aluminum Electrolytic Technology with High Ripple Current Capability |
| Endurance | 4,000 Hours at 125°C |
| Compliance | Designed for Automotive-Grade Applications |
Technical Specifications
| Specification | Value |
|---|---|
| Brand | TEAPU |
| Series | MT Series |
| Product Type | Aluminum Electrolytic Capacitor |
| Rated Voltage | 50 Vdc |
| Nominal Capacitance | 220µF |
| Case Size | 10 × 10.5 mm |
| Operating Temperature | -55°C to +125°C |
| Endurance | 4,000 Hours at 125°C |
| Capacitance Tolerance | ±20% (M) |
| DC Leakage Current | I ≤ 0.01CV (at 20°C after 2 minutes) |
| Dissipation Factor (tanδ) | Not to exceed the specified value |
| ESR | Low ESR; value at 100kHz and 20°C according to specified characteristics |
| Ripple Current | High Ripple Current Capability |
| Compliance | Automotive-Grade Application Compatible |
Performance Advantages
| Advantage | Benefit |
|---|---|
| 4,000-Hour Endurance | Provides dependable long-term operation under demanding high-temperature conditions up to 125°C. |
| Low ESR Technology | Helps reduce internal resistance, power losses and heat generation while improving power circuit efficiency. |
| High Ripple Current | Designed to handle demanding ripple-current conditions in modern power electronics and automotive applications. |
| 50V 220µF Configuration | Offers a practical combination of voltage rating, capacitance and compact physical size for power filtering and energy-storage circuits. |
| Compact 10×10.5 mm Case | Space-efficient radial capacitor design suitable for compact electronic assemblies and PCB applications. |
| Wide Temperature Capability | Reliable operation across a -55°C to +125°C temperature range for demanding electronic environments. |
| Automotive-Grade Applications | Suitable for demanding automotive electronic systems where thermal stability, ripple performance and reliability are important. |
Applications
| Application | Typical Usage |
|---|---|
| Automotive Electronics | Power filtering, voltage stabilization and energy storage in demanding automotive electronic systems. |
| System Boards | DC power filtering and energy storage for system boards and embedded electronic equipment. |
| Display Cards | Power stabilization and ripple filtering for display and graphics-related electronic assemblies. |
| Power Supplies | Input and output filtering in compact power supplies and power conversion circuits. |
| Small Chargers | Energy storage and ripple suppression in compact charger and adapter circuits. |
| Intelligent TV Systems | Power filtering and voltage stabilization for intelligent TV and consumer electronic equipment. |
| DC-DC Converters | Output filtering, transient support and energy storage in DC-DC power conversion circuits. |
| Industrial Electronics | Reliable filtering and power conditioning for industrial control and electronic equipment. |
Why Choose TEAPU MT Series
The TEAPU MT Series is designed for electronic applications that require dependable electrical performance, low ESR characteristics and high ripple current capability. The MT 50V 220µF capacitor combines a 50V DC voltage rating with 220µF capacitance in a compact 10×10.5 mm case, providing an efficient solution for PCB power filtering and energy-storage requirements.
With an operating temperature range of -55°C to +125°C and an endurance rating of 4,000 hours at 125°C, this TEAPU aluminum electrolytic capacitor is engineered for demanding thermal environments. Its low ESR and high ripple current characteristics make it well suited to power supplies, system boards, display cards, chargers and automotive electronic applications.
The compact 10×10.5 mm package helps engineers optimize PCB space while maintaining reliable capacitance and voltage filtering performance. For professional electronic design, repair and manufacturing, the TEAPU MT Series provides a practical combination of compact size, high-temperature endurance, low ESR and high ripple-current capability.
Quality Assurance
TEAPU MT Series aluminum electrolytic capacitors are designed for stable and reliable operation across demanding electronic environments. The MT 50V 220µF capacitor is specified for operation from -55°C to +125°C and provides 4,000 hours of endurance at 125°C, supporting long-term performance in high-temperature applications.
Electrical characteristics including capacitance, leakage current, dissipation factor and ESR are specified to support consistent component performance. The low ESR and high ripple-current design makes the component suitable for professional power electronics, automotive-grade applications and other demanding PCB assemblies.
Product Summary
| Category | Information |
|---|---|
| Brand | TEAPU |
| Series | MT Series |
| Product | MT 50V 220µF 10×10.5 mm Low ESR High Ripple Aluminum Electrolytic Capacitor |
| Endurance | 4,000 Hours at 125°C |
| Technology | Low ESR, High Ripple Current Aluminum Electrolytic Technology |
| Recommended Applications | Automotive Electronics, System Boards, Display Cards, Small Chargers, Intelligent TVs, DC-DC Converters, Power Supplies and Industrial Electronic Equipment. |
| Compliance | Automotive-Grade Application Compatible |
TEAPU MT Series aluminum electrolytic capacitors are engineered for reliable power filtering, energy storage and voltage stabilization in professional electronic applications. The MT 50V 220µF 10×10.5 mm capacitor combines low ESR performance, high ripple-current capability and high-temperature endurance in a compact PCB-friendly package.
With a 50V DC rating, 220µF nominal capacitance, -55°C to +125°C operating temperature range and 4,000-hour endurance at 125°C, this TEAPU capacitor is suitable for automotive-grade applications, system boards, display cards, small chargers, intelligent TVs, power supplies and other demanding electronic systems.
