Description
| Feature | Description |
|---|---|

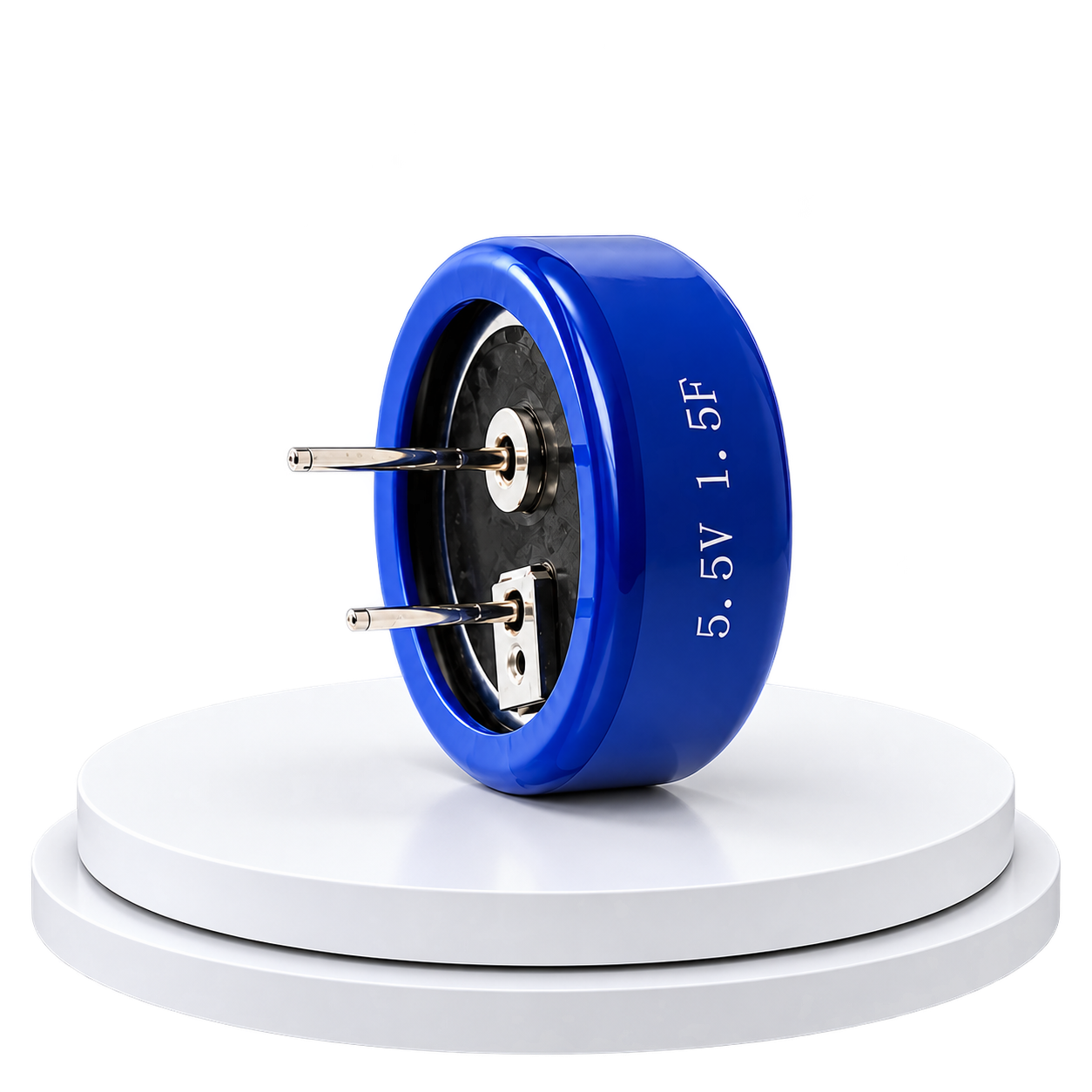

| Product Type | Laminated Button Supercapacitor |
| Product Series | Laminated Button Series |
| Rated Voltage | 5.5V DC / 3.3V DC |
| Capacitance Range | 0.5F to 4F |
| Operating Temperature | -40°C to +85°C |
| Cycle Life | Up to 1,000,000 charge-discharge cycles |
| Package Options | V / H / C configurations, including 1120 and 1920 packages |
Technical Specifications
| Specification | Value |
|---|---|
| Product Type | Laminated Button Supercapacitor |
| Rated Working Voltage | 5.5V DC / 3.3V DC |
| Nominal Capacitance Range | 0.5F to 4F |
| Operating Temperature Range | -40°C to +85°C |
| Specified Working Temperature | -40°C to +70°C for specified laminated button configurations |
| Cycle Life | 1,000,000 charge-discharge cycles |
| Package | 1120 / 1920 package options with V / H / C configurations |
| Dissipation Factor (tanδ) | Within specified standard value |
| Product Coverage | Includes 5.5V 0.22F-V/H/C through 1.5F-V/H/C configurations |
Performance Advantages
| Advantage | Benefit |
|---|---|
| Compact Laminated Button Design | Provides a compact energy-storage solution for space-constrained electronic designs. |
| High Cycle Life | Supports up to 1 million charge-discharge cycles for dependable long-term operation. |
| Wide Temperature Capability | Designed for reliable operation across demanding temperature environments from -40°C to +85°C. |
| Multiple Voltage Options | Available in 5.5V and 3.3V configurations for flexible circuit and energy-storage applications. |
| Flexible Capacitance Range | 0.5F to 4F options provide greater flexibility for backup power and pulse-energy requirements. |
| Multiple Package Configurations | V, H and C configurations support a broad range of PCB and electronic product designs. |
Applications
| Application | Typical Usage |
|---|---|
| Memory Backup Systems | Provides compact backup energy for memory retention and data protection circuits. |
| Real-Time Clock Backup | Supports reliable backup power for RTC modules and low-power electronic circuits. |
| Consumer Electronics | Suitable for compact electronic devices requiring rechargeable energy storage. |
| Smart Home Devices | Provides compact energy storage for smart sensors, controllers and connected home electronics. |
| Industrial Electronics | Supports backup and pulse-energy requirements in industrial control and monitoring equipment. |
| IoT Devices | Compact supercapacitor energy storage for connected sensors, wireless modules and IoT electronics. |
| Portable Electronics | Provides rechargeable energy storage where compact size and high cycle life are important. |
| Electronic Control Systems | Suitable for backup power, voltage support and energy buffering in electronic control systems. |
Why Choose Laminated Button Supercapacitors
Laminated button supercapacitors provide a compact and efficient energy-storage solution for modern electronic equipment. Their rechargeable design, high cycle life and flexible voltage and capacitance options make them well suited for applications where reliable short-term energy storage and frequent charge-discharge operation are required.
The Laminated Button Series covers multiple configurations, including 5.5V 0.22F-V/H/C through 1.5F-V/H/C products, with 1120 and 1920 package options. The series offers 3.3V and 5.5V rated voltage options and capacitance selections from 0.5F to 4F, providing design flexibility for compact electronic systems.
With an operating temperature capability of -40°C to +85°C and a cycle life of up to 1 million cycles, these compact supercapacitors are designed for dependable performance in backup power, memory retention, smart electronics, IoT devices, industrial controls and other space-constrained applications.
Quality Assurance
Laminated Button Series products are designed for stable electrical performance, reliable energy storage and long-term repeated charge-discharge operation. Product specifications are controlled across key parameters including rated voltage, capacitance, temperature performance and cycle-life characteristics to support consistent performance in demanding electronic applications.
With multiple package configurations and voltage options, the series provides engineers and OEM manufacturers with a flexible compact energy-storage component for professional electronic products, backup power systems and high-cycle applications.
Product Summary
| Category | Information |
|---|---|
| Product Type | Laminated Button Supercapacitor |
| Series | Laminated Button Series |
| Rated Voltage | 5.5V DC / 3.3V DC |
| Capacitance | 0.5F to 4F |
| Operating Temperature | -40°C to +85°C |
| Cycle Life | Up to 1,000,000 charge-discharge cycles |
| Package Options | V / H / C configurations, including 1120 / 1920 packages |
| Recommended Applications | Memory Backup, RTC Backup, Smart Home Devices, IoT Electronics, Industrial Control Systems, Consumer Electronics, Portable Electronics and Compact Backup Power Applications. |
Laminated Button supercapacitors are compact rechargeable energy-storage components designed for reliable performance, high cycle life and flexible integration into modern electronic systems.
The series combines 3.3V and 5.5V voltage options, multiple capacitance values and V/H/C package configurations to provide a practical solution for memory backup, IoT electronics, smart home equipment, industrial control systems and other applications requiring compact, high-cycle energy storage.
